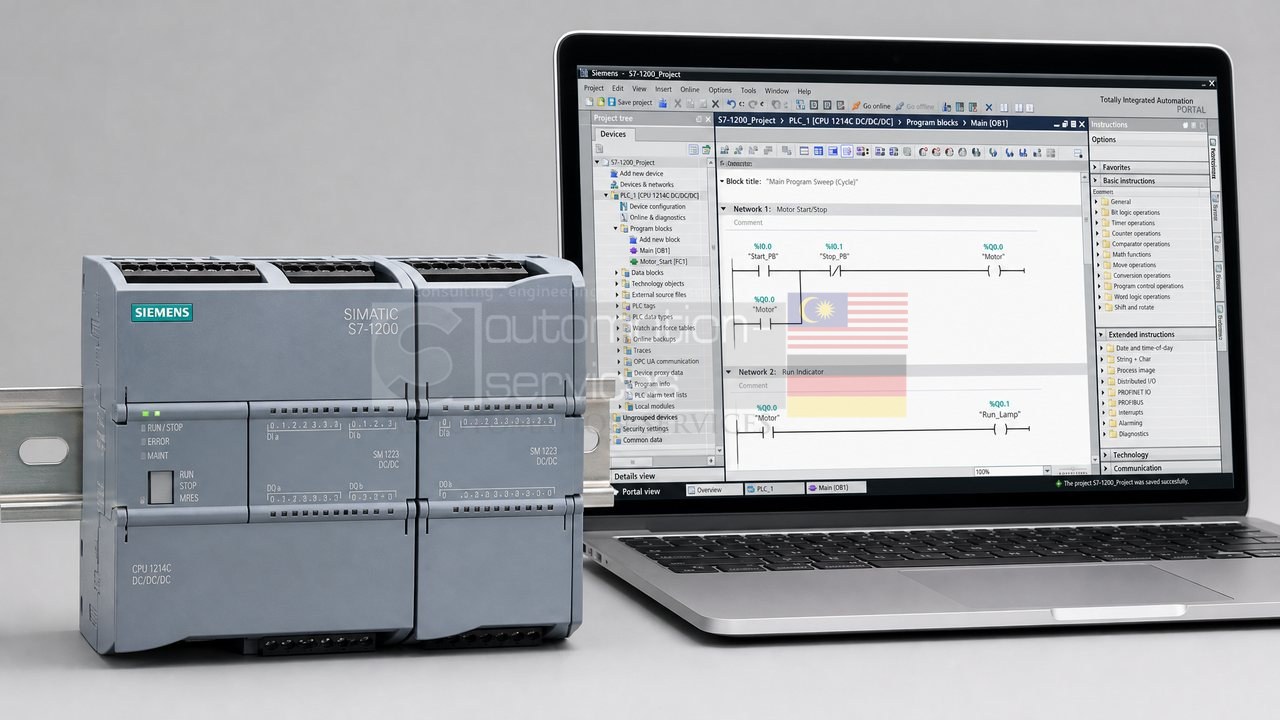

Siemens S7-1200/S7-1500 PLC with TIA Portal V18 – Basic to Advance Training (5 Days)

5 Days Basic to Advanced

Training Course Objectives

This training program for Siemens TIA Portal V18 & WinCC Comfort, Covers Basic,Intermediate & Advance PLC Programming. This course provides a deep and advance understanding of Siemens PLC programming capabilities. Control strategies and deep programming will be reviewed. Data Movement, Floating Point Math, Shift, Compare, Distribute, Collection, Transfer, Control Projects and instructions will be covered.

Training Course Content

Day 1

Lesson 1 – Introduction and Overview

Course Objectives.
Course Prerequisites.
Computer Numbering Systems.

Lesson 2 – Number Systems

Binary Numbers.
Hexadecimal Numbers.
Octal Numbers.
Binary Coded Decimal.
Integer (16/32 Bit).
Decimal (16/32 Bit).

Lesson 3 – Hardware Review

Hardware Components.
Inputs and Addressing.
Outputs and Addressing.
Power Supplies.
Memory Types.

Lesson 4 – Programming Equipment

Programming Siemens TIA Portal Overview.
File Format.
Hardware Connection.
Communication (Profinet).

Lesson 5 – Basic Instructions

Symbols.
Ladder Logic.
STL (Statement List).
FBD (Function Block Diagram).

Lesson 6 – Develop and Edit Programs

Launching Simatic TIA Portal V18.
Creating a New Project.
Editing the Ladder.
Exercise – Contacts and Coils. Program Transfer.
Online Editing.
Monitor the Program Operation.
Forcing Bits and Changing Registers.

Day 2

Lesson 7 – Programming Functions with Projects

Timers, Counters, Math functions, MOV and other Functions.
Program Examples and programming functions.
Best Practices in Programming (GPP).
Indirect Addressing.
Monitor the Program Operation. Forcing Bits and Changing Registers.
Troubleshooting Methodology. Additional Timer Commands.
Exercise – Timers, Counters.
Exercise – Conveyors.

Day 3

Lesson 8 – Integration to HMI & SCADA

Introduction to WinCC Comfort and Runtime.
Various Functions display in HMI.
Mixer Tank Project creation in PLC. Downloading to PLC and Debugging.
Creating Screens to Control Mixer Tank and Monitor. Establishing comm to PLC and HMI.
Debugging and Monitoring.
Creating WinCC Comfort Runtime PC based.

Day 4

Lesson 9 – Advance programming using Function Blocks

Introduction to Analog Input and Output.
Programming Analog Input and Analog Output.
Scaling Analog Input.
Scaling Analog Output.
Downloading and Testing with Signal Injector.
Configuring VFD control with AIAO.

Day 5

Lesson 10 – Advance programming integrated with WinCC Runtime

Integration of AIAO to Mixer Tank/VFD Project creation in PLC. Downloading to PLC and Debugging.
Creating Screens to Control Mixer Tank/VFD and Monitor. Establishing comm to PLC and HMI.
Debugging and Monitoring.
Creating WinCC Comfort Runtime PC based.
Project Methods (FDS, FAT, SAT, Project Commissioning).
Siemens Webserver and cloud monitoring programming.

Training Course Aims

Upon completion of this course, the students will be able to:

Construct, test and run PLC programs using instructions.
Utilize advanced trouble shooting tools online.
Download, Upload, Save and copy programs.
Formulate a control strategy for creating PLC programs.
Fully document a PLC program.
Utilize advanced troubleshooting tools.

Your Trainers

Training is conducted by ASASMY's certified trainers with decades of combined industry experience in PLC, HMI & SCADA programming across Malaysia, Singapore, Europe and the USA — continuing the hands-on teaching legacy of our late founder, Mr. Sunderasen (Cikgu PLC). Every session is guided step by step on real industrial equipment.

Meet Our Trainers

Recommended Audience

Electricians, Technicians, Engineers, Maintenance Personnel, Control Engineers, Individuals who need to be able to understand the advanced capabilities of Siemens S7-1200 & S7-1500 PLCs.

Prerequisites

Basic computer skills are required.
Basic Electricity.
Basic Knowledge on Electrical /Electronics.

Equipment Used

PLC S7-1200 / S7-1500, Simatic Touch Panel, Fluke Process Meter.
Training Laptop with Simatic TIA Portal V18 & HMI Software Installed for 2 Person Share.

Pricing

This 5-day course is HRDCorp SBL_Khas claimable, with direct-payment options for company and personal sponsors. Request an official quotation to get the latest course fees for your team.
